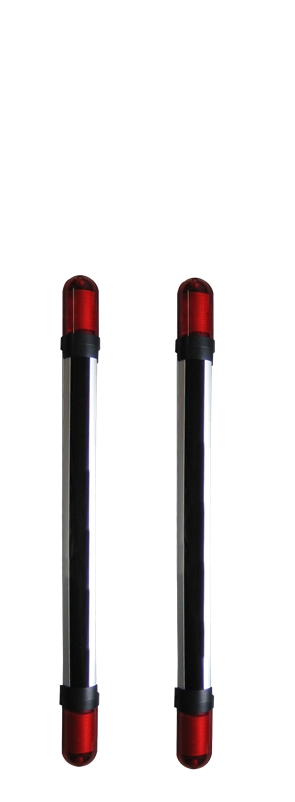

FOCUS ABX-204 ΜΠΑΡΙΕΡΑ BEAM ΓΙΑ ΑΝΟΙΓΜΑΤΑ, 4 ΔΕΣΜΕΣ
- Μπάρα υπερύθρων 4 δεσμών FOCUS
- μέγιστη απόσταση 20m
- ύψος 70cm
- το προϊόν απευθύνεται σε τεχνικούς
Adopt digital frequency conversion technology, no need synchronization cable.
8 digital frequency conversion, Wired system and BUS system compatible.
Intelligence identification of rain/fog, Transmitting power intelligent adjustable.
Auto anti-white light.
|
Model
|
ABX-204/B
|
ABX-206/B
|
ABX-208/B
|
ABX-2010/B
|
ABX-2012B
|
|
Outdoor distance
|
20m
|
20m
|
20m
|
20m
|
20m
|
|
Indoor distance
|
60m
|
60m
|
60m
|
60m
|
60m
|
|
Number of beams
|
4
|
6
|
8
|
10
|
12
|
|
Optical source
|
Digital infrared pulse
|
|
Response
Speed
|
10 - 500ms
|
|
Alarm Output common
|
NC&NO - contact rating AV/DC 30V/0.5A
|
|
Alarm Output-BUS
|
RS-485
|
|
Working voltage
|
DC 9-24V；AC 8-18V
|
|
Working current
|
60mA
|
80mA
|
80mA
|
80mA
|
100mA
|
|
Longevity model
|
30mA
|
40mA
|
40mA
|
40mA
|
50mA
|
|
Temperature
|
-25c - 55c
|
|
Humidity
|
5% - 95% (RH)
|
|
Anti-fog
|
Visibility≥5m ，Effective protection distance≥90%
|
|
Tamper Output
|
(NC) contact rating AV/DC 24V/0.5mA
|
|
Vertical light beam adjusting
|
±2 μοίρες
|
|
Housing material
|
PC
|
|
Anti-dew/frost
|
Heating cover (optional)
|
|
Length
|
70cm
|
115cm
|
140cm
|
165cm
|
200cm
|
|
Remark
|
The model number with B is bus model output beams detector.
|
